Inline fan

5000 INR/Thousand

Get a Price/Quote

Product Details:

Air Flow Capacity 280 m3/h
Power Mode AC Mains
Condition New
Mounting Duct/Inline Mounted
Dimension (L*W*H) 295x205x195 mm
Temperature Control No
Running Current 0.18 A
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Inline fan Price And Quantity

Price Range 5000.00 - 50000.00 INR/Thousand
Minimum Order Quantity 1 Cubic Foot
Price 5000 INR/Thousand

Lifetime Expectancy >30,000 hours
Impeller Material High-Grade Polypropylene
Operating Cycle Continuous
Maintenance Low Maintenance
Motor Type Single-phase asynchronous motor
Application Bathroom, Kitchen, Hydroponics, Ventilation Systems
Enclosure Material ABS Plastic Housing
Installation Type Horizontal or Vertical
Protection Class IP44
Bearing Type Ball Bearing
Connection Type Terminal Block
Humidity Resistance Up to 95% RH

Inline fan Product Specifications

Color White/Grey
Remote Operated Yes
Noise Level Below 45 dB (A)
Filtration Grade No filtration
Indoor Fan Input 30 W
Power Source Electric
Working Temperature -20C to 60C
Cooling/Heating Ventilation Only
Power Consumption 30 W
Power Supply Single Phase 50/60 Hz
Dimension (L*W*H) 295x205x195 mm
Mounting Duct/Inline Mounted
Condition New
Voltage 220-240 V
Sensible control Manual Switch
Temperature Control No
Running Current 0.18 A
Fan Speed 2600 RPM
Capacity 150 mm (6 inch) diameter
Energy Efficiency Rating A+
Power Mode AC Mains
Air Flow Capacity 280 m3/h
Weight (kg) Approx. 2.8 kg
Type Inline Fan

Lifetime Expectancy >30,000 hours
Impeller Material High-Grade Polypropylene
Operating Cycle Continuous
Maintenance Low Maintenance
Motor Type Single-phase asynchronous motor
Application Bathroom, Kitchen, Hydroponics, Ventilation Systems
Enclosure Material ABS Plastic Housing
Installation Type Horizontal or Vertical
Protection Class IP44
Bearing Type Ball Bearing
Connection Type Terminal Block
Humidity Resistance Up to 95% RH

Product Description

Inline fans are mounted inline with the ductwork, bringing air from the inside and to the outside of the home. An inline fan may also be described as a remote-mounted fan. Inline fans are useful for applications that include: Ventilation of wet spaces such as bathrooms, kitchens and laundries.

Efficient Airflow for Diverse Spaces

This inline fan is tailored to suit a wide range of environments, including bathrooms, kitchens, hydroponic grow rooms, and commercial ventilation systems. With its high airflow capacity and compact design, it excels at quickly moving air through ductwork, improving indoor air quality, and reducing excess humidity, all while fitting neatly into existing ventilation layouts.

Durable Design and Quiet Operation

Engineered with a robust ABS plastic housing and high-grade polypropylene impeller, this fan is built for durability. Its ball bearing motor supports consistent, quiet performance-operating below 45 dB-making it suitable for residential and professional spaces alike. With an expected lifetime over 30,000 hours, it minimizes maintenance needs for added convenience.

FAQ's of Inline fan:

Q: How do I install the inline fan and in which orientations can it be mounted?

A: The inline fan can be installed either horizontally or vertically, allowing flexibility based on your ductwork. It is designed for duct or inline mounting and requires connection to an AC mains power source (220-240 V) using the provided terminal block.

Q: What kind of environments is this inline fan suitable for?

A: This fan is ideal for bathrooms, kitchens, hydroponic systems, and other indoor spaces needing enhanced ventilation. Its IP44 protection and humidity resistance up to 95% RH make it especially suitable for damp or humid environments.

Q: When should I use this inline fan for optimal performance?

A: The fan is engineered for continuous operation and performs best when used to manage air exchange in enclosed or humid areas. Turn it on during activities that produce moisture or odors, such as cooking, showering, or running hydroponic setups.

Q: What maintenance is required for the inline fan?

A: This fan is low-maintenance due to its robust ball bearing design and high-grade materials. Routine checks for dust buildup and verifying secure connections are recommended, but no elaborate servicing is typically needed.

Q: Where can this inline fan be installed for best results?

A: Install the fan directly in your ventilation ductwork, as close as possible to the area requiring improved airflow. Its compact size and versatile design allow it to fit into bathroom, kitchen, or hydroponics ducts with ease.

Q: What are the benefits of using this inline fan in my ventilation system?

A: Benefits include efficient removal of humidity and odors, improved indoor air quality, quiet operation, energy efficiency (A+ rating), and reliable performance even under continuous use.

Q: Does the fan have temperature or remote control features?

A: This fan operates via a manual switch and does not include temperature control or remote operation, ensuring straightforward, reliable, and direct user control.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Industrial Air Conditioner And Devices' category

Axial Flow Fan Price : 15000 INR/Thousand Minimum Order Quantity : 1 Condition : New Type : Axial Flow Fan Power Source : Other, Electric Voltage : 220/380 V Mounting : Other, Duct / Wall Mount Dimension (L*W*H) : Custom/varies by model Place of Origin : India Weight (kg) : 75125 kg (depending on size) Color : Silver Power Consumption : 311 kW Working Temperature : 10C to +60C Remote Operated : Yes Power Supply : Single/Three Phase Running Current : 822 A Air Flow Capacity : 500065000 CFM Energy Efficiency Rating : Other, Standard Capacity : 500065000 CFM Power Mode : AC Noise Level : Below 75 dB Fan Speed : 1440/2880 RPM Temperature Control : Manual/Automatic Sensible control : Yes Cooling/Heating : Cooling

Send Inquiry

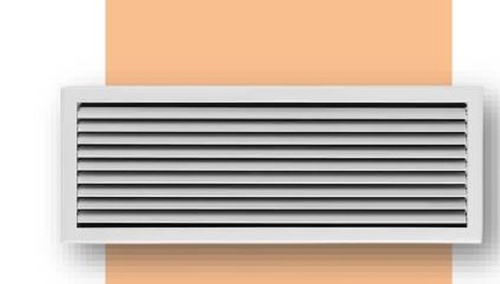

AIR CONDITIONG GRILL Price : 5000 INR/Thousand Minimum Order Quantity : 1 Condition : New Type : Air Conditioning Grill Power Source : Other, N/A (Nonelectrical) Voltage : N/A (Passive Device) Mounting : Other, Ceiling, wall, or duct mounted Dimension (L*W*H) : Available in multiple standard and custom sizes Place of Origin : India Weight (kg) : 1.5 3.0 kg depending on size Color : White or customizable as per requirement Power Consumption : Nil (passive device) Working Temperature : 10C to 60C Remote Operated : Yes Air Flow Capacity : Ranging from 200 to 2000 CFM as per model Energy Efficiency Rating : Other, Improves air flow efficiency of HVAC systems Capacity : Designed for optimal air distribution, compatible with various tonnages of AC units Noise Level : Low noise operation Fan Speed : N/A (No fan included) Temperature Control : Manual/adjustable via damper Sensible control : Manual damper control Filtration Grade : Optional filter integration possible Cooling/Heating : Other, Suitable for both cooling and heating HVAC applications

Send Inquiry

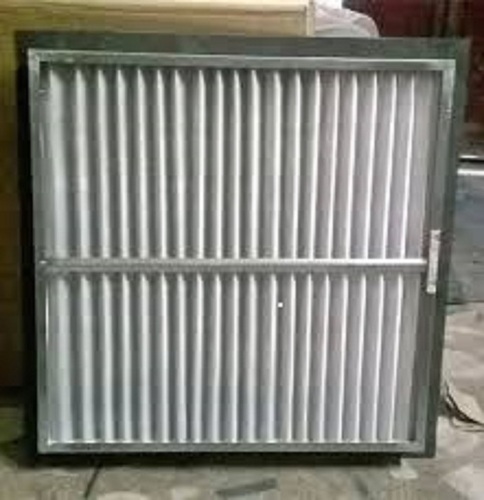

Fine Filter Price : 2200 INR/Piece Minimum Order Quantity : 2 Condition : New Type : Fine Filter Power Source : Other, Electric Voltage : 220240V Mounting : Other, Vertical / Horizontal Dimension (L*W*H) : Custom/As per requirement Place of Origin : India Weight (kg) : 28 kg Color : White Power Consumption : Low Working Temperature : Ambient Remote Operated : Yes Power Supply : AC Air Flow Capacity : Customized Capacity : Standard Power Mode : Other, Continuous Noise Level : Low Filtration Grade : FINE
